Optical Levels (Dumpy Levels): How to Set Site Levels for Foundations and Drainage

Your builder pours the foundation concrete and moves on to blockwork. Two weeks later, building control visits and points out that the concrete surface is 40mm higher on one side than the other. The blockwork courses will be progressively out of level as the wall goes up, and the floor slab won't sit flat. The concrete has to be broken out and re-poured. That's a week's delay and a four-figure bill, all because nobody checked the trench base was level before the pour. An optical level would have caught it in ten minutes.

What it is and when you need one

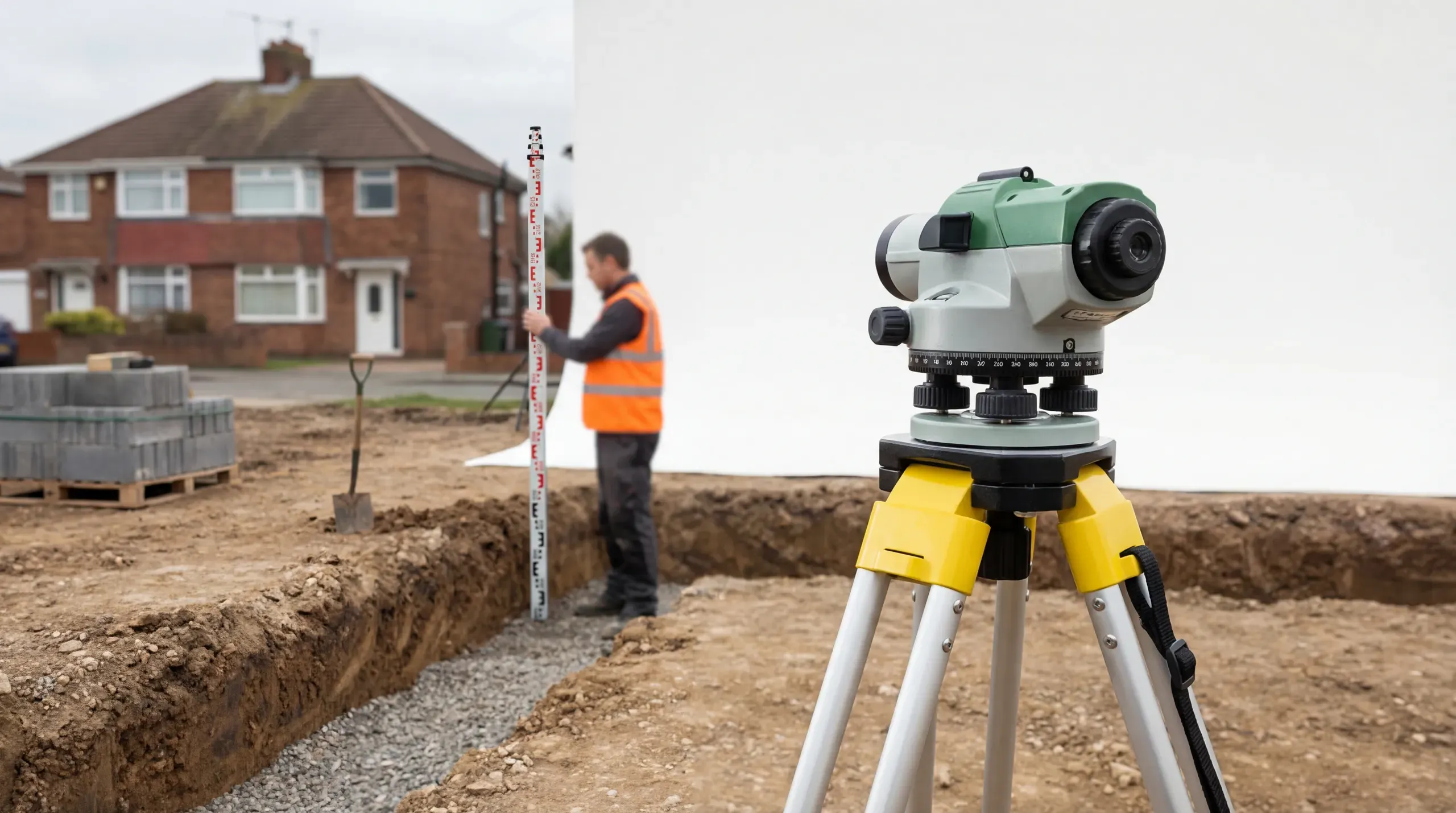

An optical level (also called a dumpy level or automatic level) is a telescope on a tripod. You look through the eyepiece at a graduated staff (a tall measuring stick with markings) held by a second person at whatever point you want to check. The crosshairs in the eyepiece tell you exactly where on the staff the line of sight falls, giving you a height reading accurate to within 1-2mm over distances of 100 metres or more.

Inside the instrument, a pendulum compensator (a small weight suspended on fine wires) automatically levels the line of sight. Once you've roughly levelled the tripod using the built-in bubble, the compensator handles the fine adjustment. No batteries, no calibration screens, no software. It's a purely mechanical instrument that's been the standard for site levelling since the 1950s and is still used daily on construction sites across the UK.

You need one (or need someone to use one on your behalf) whenever you're establishing levels across a site. That means three jobs during a typical extension project:

• Checking foundation depth before concrete is poured, so you can prove to building control that the trench base is at the correct level across the full footprint
• Setting the finished floor level (FFL) of the extension to match the existing house, so there's no step at the threshold
• Setting drainage falls to ensure wastewater flows in the right direction at the correct gradient

Types of optical level

All modern optical levels are "automatic" levels, meaning they have a pendulum compensator that handles fine levelling. The old-fashioned "dumpy level" required manual adjustment of a tilting screw, but you'd struggle to find one outside a museum. When builders say "dumpy level" today, they mean an automatic level.

The differences between models come down to magnification and accuracy.

For a domestic extension, 24x-26x magnification is all you need. Your foundation trench is unlikely to be more than 15 metres from the instrument. At that distance, even a 20x model reads clearly. The accuracy difference between a £200and a £400instrument is irrelevant when your tolerance is ±5mm.

How to use it properly

Setting up the tripod

Push the tripod legs firmly into the ground. On soft soil, stamp them in. On concrete or paving, use the pointed feet or place the tripod on a stable, flat area. Spread the legs wide for stability. The tripod head should be roughly level and at a height where you can look through the eyepiece comfortably without stooping.

Mount the instrument on the tripod by threading it onto the 5/8-inch tripod screw. Every surveying tripod and every optical level uses this same thread.

Levelling the instrument

Adjust the three footscrews on the instrument's base plate to centre the circular bubble (the bull's eye spirit level on top of the instrument). Turn two adjacent footscrews simultaneously in opposite directions, watch the bubble move, and adjust the third screw to centre it. The bubble doesn't need to be dead centre. Get it within the inner circle and the pendulum compensator handles the rest.

Establishing a site datum

Before you take any readings, you need a fixed reference point that won't move during the works. This is your site datum (benchmark). It should be somewhere undisturbed: a mark on the existing house wall, a concrete fence post, or a purpose-driven datum peg set in concrete in the garden.

All subsequent readings are relative to this datum. If the datum moves (because someone drives over it with a mini digger), every reading you've taken is useless. Choose somewhere safe and mark it clearly.

Taking a reading: backsight and foresight

This is the core skill. It sounds complicated but becomes second nature after three or four readings.

1. Take the backsight

   Have your staff holder stand the staff vertically on the datum point. Look through the eyepiece, focus on the staff using the focus knob, and read where the horizontal crosshair intersects the staff markings. This is your backsight reading. Write it down.

2. Calculate height of instrument

   Add the backsight reading to the datum elevation. If your datum is set at 0.000m (a convenient assumption for a single project), and the backsight reads 1.450m, your height of instrument (HI) is 1.450m. The HI stays the same for every foresight you take from this setup position.

3. Take the foresight

   Your staff holder moves to the point you want to check (the trench base, the concrete surface, the drainage invert). They hold the staff vertically. You read the crosshair position on the staff. This is your foresight reading.

4. Calculate the point's level

   Subtract the foresight reading from the HI. If HI is 1.450m and the foresight reads 2.100m, the point is at -0.650m (650mm below the datum). If the foresight reads 0.900m, the point is at +0.550m (550mm above the datum).

That's it. Backsight gives you the height of the instrument. Every foresight from that position gives you the level of any point the staff holder can reach. Move the instrument, take a new backsight, and carry on.

Reading the levelling staff

Click to enlarge

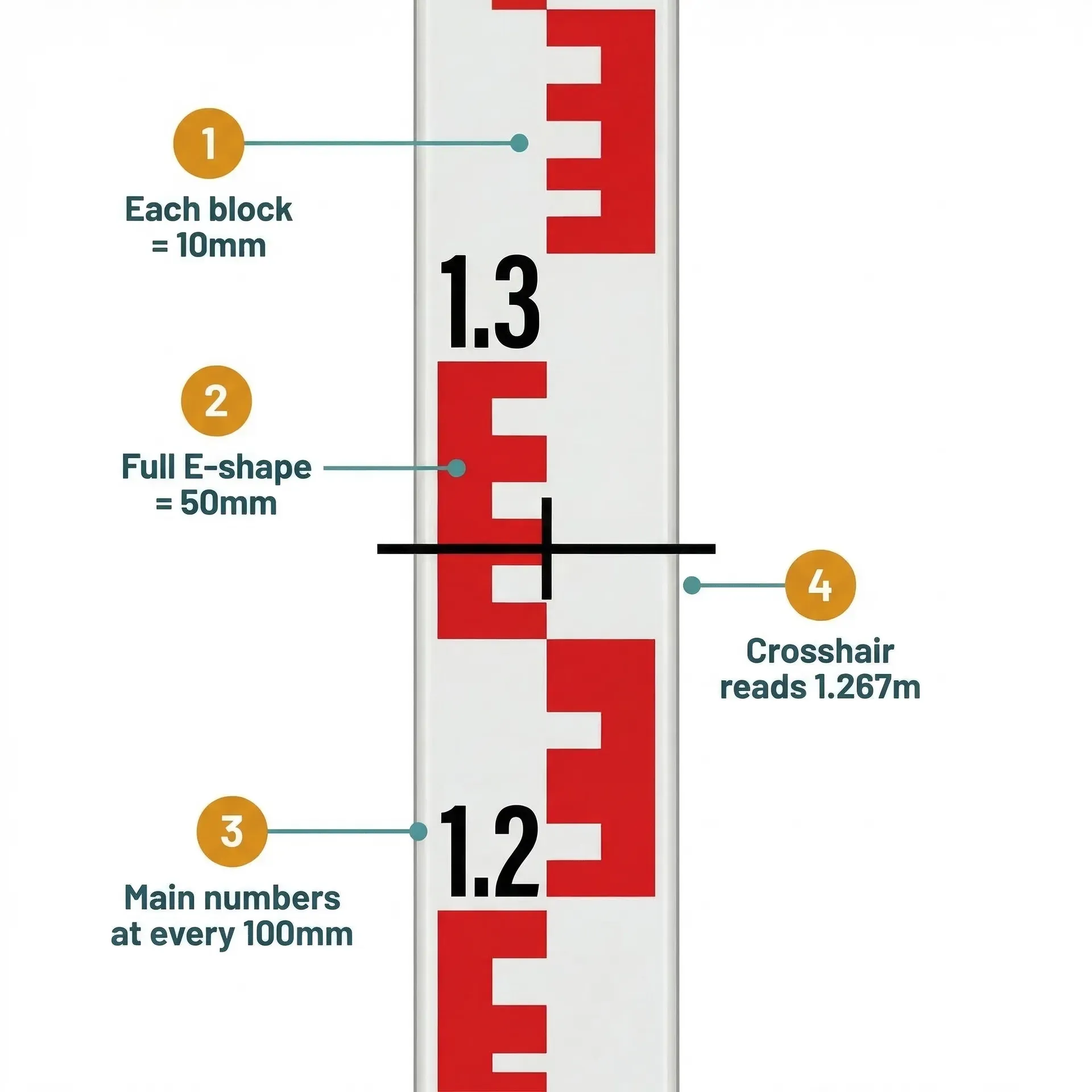

The staff has a distinctive "E-pattern" that confuses everyone the first time. Here's how it works.

The large numbers (1, 2, 3...) mark whole metres. Between them, smaller numbers mark every 100mm (the "1" between 1.0 and 1.1 means 1.100m). The alternating coloured blocks between the numbers are each 10mm tall. They're arranged in an E-shape (three horizontal bars connected by a vertical bar on one side), where each E covers 50mm.

To read the staff: find the nearest number below the crosshair, count blocks upward to the crosshair, and estimate the final millimetres by eye. If the crosshair sits 7/10 of the way through a block, add 7mm.

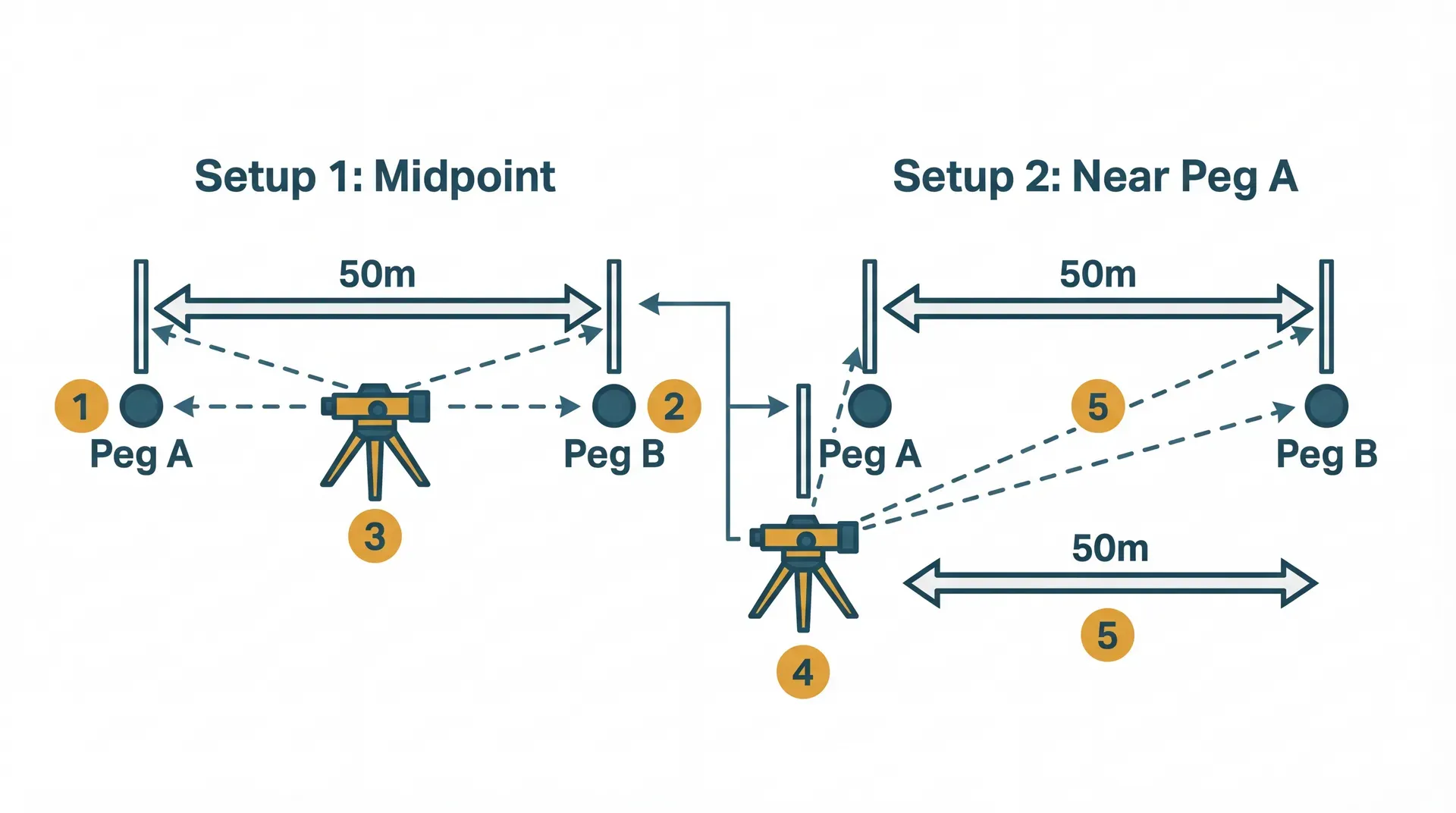

How to check accuracy: the two-peg test

Before relying on any optical level (especially a hired or second-hand one), run the two-peg test. It takes ten minutes and tells you whether the instrument is in calibration.

1. Set two pegs 40-60 metres apart

   Drive two pegs into the ground in a straight line. They don't need to be at the same level.

2. Set up the instrument exactly midway

   Place the tripod at the precise midpoint between the two pegs. Level up and take a staff reading on each peg. Write both down. At the midpoint, any calibration error affects both readings equally, so the height difference between the pegs is correct regardless.

3. Move the instrument to one end

   Set up about 2 metres beyond one of the pegs. Take readings on both pegs again. If the instrument is in calibration, the height difference between the two pegs should match the midpoint result.

4. Compare the differences

   If the two height differences disagree by more than 2mm, the instrument's collimation is off. Return it for service (if hired) or have it recalibrated.

The ±2mm tolerance is the professional standard used on construction sites across the UK.

Click to enlarge

Hire vs buy

This is the key decision, and for most homeowners building a single extension, the answer is hire.

A typical extension needs level checks at three or four points during groundworks: after excavation, before the concrete pour (the building control hold point), after concrete curing, and when setting the floor slab level. Two or three hire sessions across the groundworks phase should come to under £150total.

Buying a complete set new costs £200 – £280. The Bosch GOL26D set at Screwfix (£270 inc VAT, with tripod and staff) or the Geo Fennel ELN 24 set from Trade Survey (£239 inc VAT) are the main options at the entry level. Both include everything you need. The Topcon AT-B4 (around £204for the instrument only) is a step up in build quality but you'll need to buy the tripod and staff separately.

Second-hand professional instruments from Leica, Sokkia, Topcon, or Nikon go for £50 – £100 on forums and eBay. Community consensus is clear: a used Leica or Topcon from a single owner beats a new unbranded instrument from Amazon every time. But run the two-peg test before trusting any second-hand level.

When a surveyor is cheaper

Here's the advice no equipment guide gives you. For a single extension, paying a local setting-out specialist to come to site, establish your datum pegs, and give you a set of recorded levels may be the smartest option. Call around for quotes, as rates vary by area. You get professional accuracy, a documented record to show building control, and no equipment to hire, learn, or return. For a one-off project, it's genuinely worth comparing against the cost and learning curve of doing it yourself.

A full topographic survey of your site (contour levels across the whole garden, boundary positions, drainage inverts) costs £250 – £540 and is overkill for most single-storey extensions. But if your site slopes significantly or you're doing drainage work, the surveyor's level plan will save you far more than it costs.

Alternatives

A rotary laser level with a detector is the modern alternative for outdoor levelling. It projects a 360-degree laser plane that a detector clipped to the staff can pick up, letting you work solo. Accuracy is adequate for extension groundworks. Rotary lasers cost considerably more than optical levels to buy and are typically hired rather than purchased for a single project. For a homeowner with someone to hold the staff, the optical level is cheaper and more accurate.

A water level (a length of clear tubing filled with water) is the budget DIY option. Water finds its own level, so the water height at each end of the tube gives you two level points. Self-builders on forums report achieving 1-2mm accuracy across 40 metres with nothing more than a garden hose. The main pitfall is temperature: if the water at each end is at different temperatures, the readings drift. It works around obstacles that block line-of-sight, which is something neither optical nor laser levels can do.

A long spirit level (1200mm or 1800mm) with a straight edge can transfer levels over short distances. It's fine for checking a single concrete slab but impractical across a full foundation trench. By the time you've leap-frogged a spirit level ten times across the site, accumulated errors will be significant.

Where you'll need this

• Foundations and footings - checking trench depth is uniform before the concrete pour, demonstrating correct levels to building control
• Drainage - setting fall gradients on drainage runs to ensure wastewater flows correctly

These levelling tasks appear during the groundworks phase of any extension or renovation project. Getting levels right at this stage prevents compounding errors through every subsequent phase of the build.

Safety

Optical levels have no electrical components, no laser, and no moving parts that could cause injury. The main safety consideration is the tripod: keep the legs spread wide and the instrument visible so nobody walks into it. On an active site, a high-vis vest hung from one leg makes it obvious.

The levelling staff is an extendable aluminium pole, typically 5 metres long. Keep it well away from overhead power lines. Aluminium conducts electricity, and a 5-metre staff held vertically can easily reach cables that look safely out of reach from ground level.
