Marking Gauges: Pin vs Wheel, Types, and How to Scribe a Perfect Line
The UK guide to marking gauges. Pin vs wheel, mortice vs cutting, how to use one properly, and what to buy from around £8 upwards.
You're fitting skirting boards in a freshly plastered room. You hold a tape measure at one end, mark a line, move the tape, mark another line, and so on down the length. By the fourth mark, you've drifted 2mm. By the tenth, you're visibly off. Now multiply that by every piece of timber in the room. A marking gauge sets the distance once, locks it, and scribes the same line, at the same offset, every single time. It costs less than a takeaway coffee. And it eliminates the single biggest source of error in repetitive marking: you.
What it is and when you need one

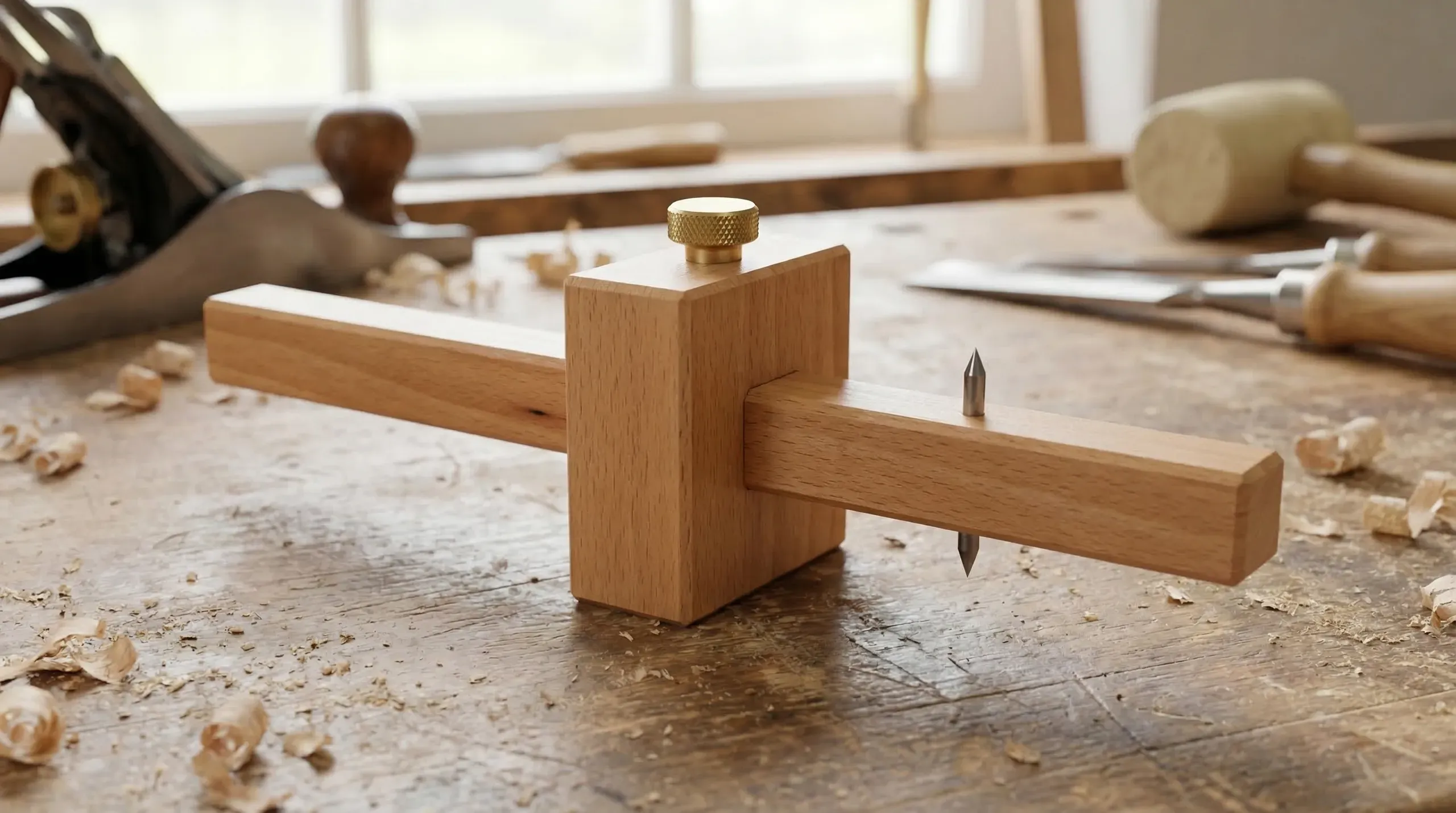

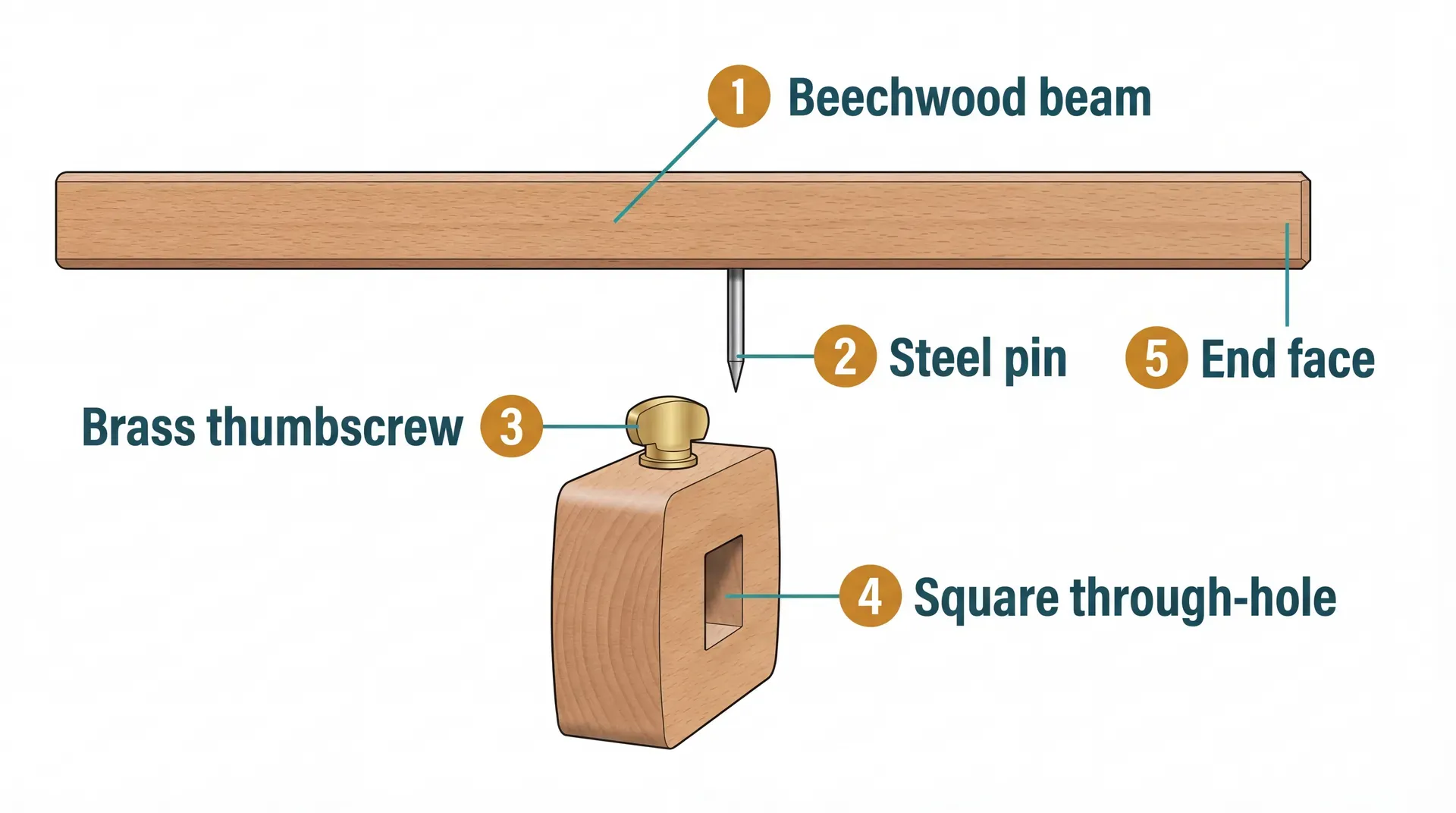

A marking gauge scribes a line parallel to an edge at a fixed distance. That's all it does. It's a beam (a straight bar of wood or metal) that slides through a fence (a flat block that presses against the edge of your workpiece). A pin, blade, or wheel at the end of the beam scratches a fine line into the timber as you push or pull the gauge along the surface.
You set the distance between the fence and the pin using a tape measure or rule, tighten the thumbscrew, and the gauge will reproduce that exact measurement as many times as you need. No re-measuring. No pencil drift. No accumulated error.
You need one whenever you're marking timber for cutting, scribing kitchen panels to fit against uneven walls, setting consistent reveals on architraves, or doing any carpentry where the same measurement repeats across multiple pieces. It's a beginner-friendly tool with no learning curve beyond basic technique, and experienced carpenters consider it indispensable.
Types and variants
Five types exist. Most homeowners need one, possibly two.
| Type | How it works | Best for | UK price range |
|---|---|---|---|
| Pin gauge (standard) | Single sharpened steel pin scribes a line. The original design, used for centuries. | With-the-grain marking on timber. General carpentry. The default choice for most tasks. | £8-20 |
| Mortice gauge | Two pins, one adjustable, scribe two parallel lines simultaneously. Sets the width of a mortice (the rectangular slot in a mortice-and-tenon joint). | Marking mortice-and-tenon joints. Specialist joinery. You don't need one unless you're cutting traditional joints. | £18-25 |
| Cutting gauge | Uses a small blade instead of a pin. Severs wood fibres cleanly rather than tearing them. | Cross-grain marking where a pin would tear the surface. Marking shoulder lines for dovetails. | £15-22 |
| Combination gauge | Combines a single pin and a mortice gauge in one tool. Usually has a pin on one side and twin pins on the other. | Versatility. One tool covers standard marking and mortice work. | £25-31 |

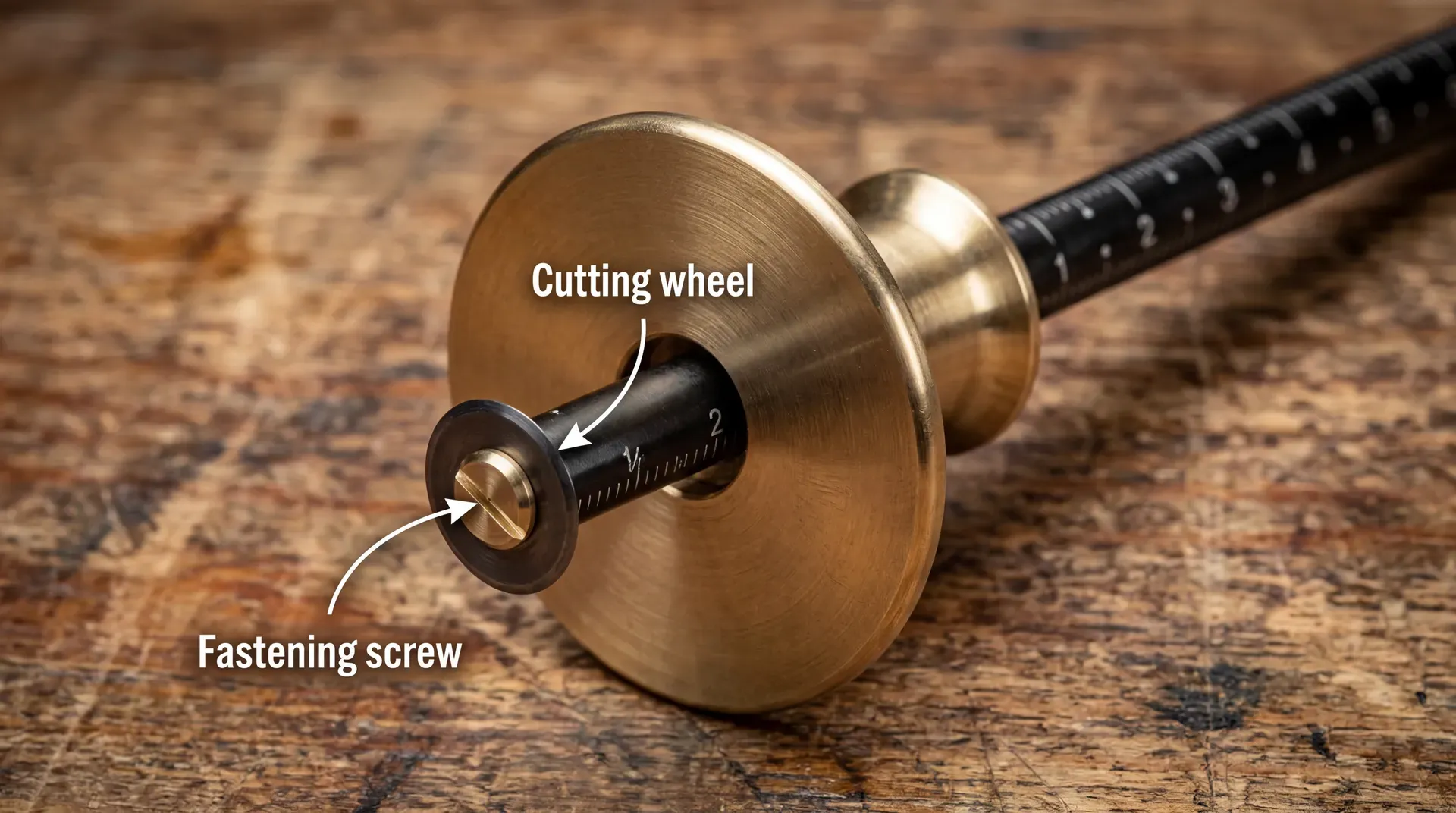

| Wheel gauge | A small hardened steel disc (wheel) rolls along the surface, cutting a fine line. Doesn't need tilting. Works in both grain directions. | Clean lines both with and across grain. Easier for beginners to get consistent results. | £24-48 |
The pin gauge is the workhorse. It's been the standard for centuries because it works. If you're doing general second-fix carpentry (skirting, architraves, door linings), a pin gauge handles everything.
The wheel gauge is the modern alternative. It cuts cleanly in both directions (with the grain and across it), doesn't require you to tilt the beam to a trailing angle, and is generally more forgiving of poor technique. The tradeoff is cost: a decent wheel gauge starts where a good pin gauge tops out.
Cutting gauges sit between the two. The blade severs cross-grain fibres cleanly where a pin would tear them. If you're marking shoulder lines for joinery, a cutting gauge or wheel gauge is the right choice. But for most extension and renovation work, where you're marking parallel lines along the grain of timber, a standard pin gauge is all you need.
The pin vs wheel debate
Woodworking forums are full of strong opinions on this. Here's the practical summary.
Pin gauges are cheap, simple, and fast to set. Experienced carpenters keep half a dozen cheap wooden pin gauges set to common measurements (more on that below). The pin needs occasional sharpening, and you need to tilt the beam slightly so the pin trails rather than digs in. With practice, this becomes second nature.
Wheel gauges produce a cleaner line, especially across the grain. They don't need tilting, so beginners find them easier to use well. But quality wheel gauges cost three to five times more than a basic pin gauge. The adjustment mechanisms on cheaper wheel gauges can be frustrating (loose screws, O-ring friction that makes fine-tuning fiddly). And some experienced woodworkers argue that wheels follow the grain like tram tracks on certain timbers, wandering off line where a pin would stay true.
The pragmatic answer: buy a budget pin gauge to start. If you find yourself doing enough carpentry to care about line quality across the grain, step up to a Veritas wheel gauge. Don't agonise over this.
How to use it properly
Setting the distance

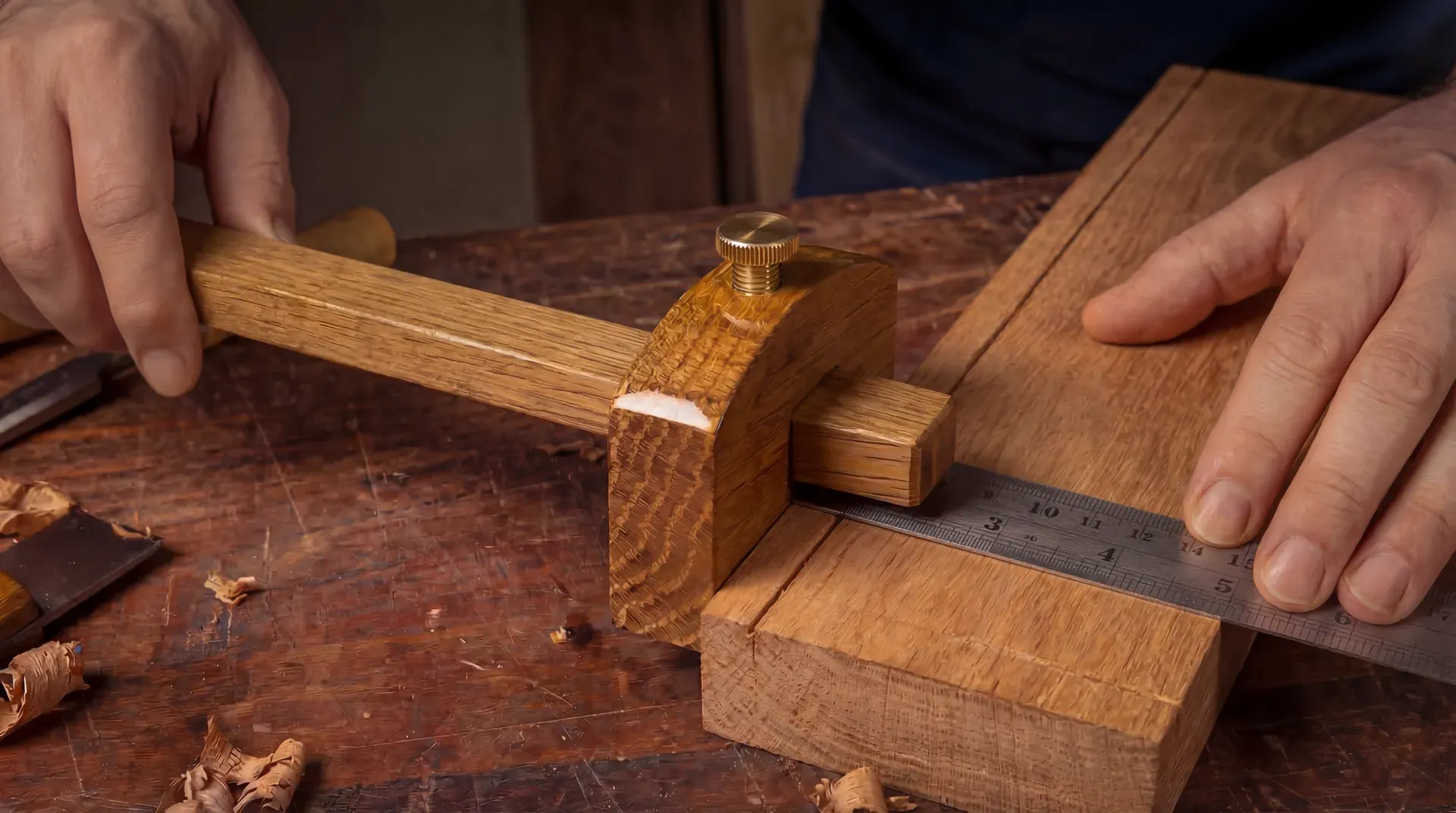

Hold a steel rule or tape measure against the fence, with the end of the rule touching the pin. Slide the beam until the pin sits at the measurement you want. Tighten the thumbscrew firmly. Then check by measuring again. A loose thumbscrew is the most common cause of inaccurate marks; the beam slips during use and your measurement drifts.
When checking the setting, push the beam gently towards and away from the fence. If there's any movement at all, tighten the thumbscrew more. On wooden gauges, the thumbscrew compresses the fence against the beam via friction alone. It needs to be properly tight.
Scribing the line

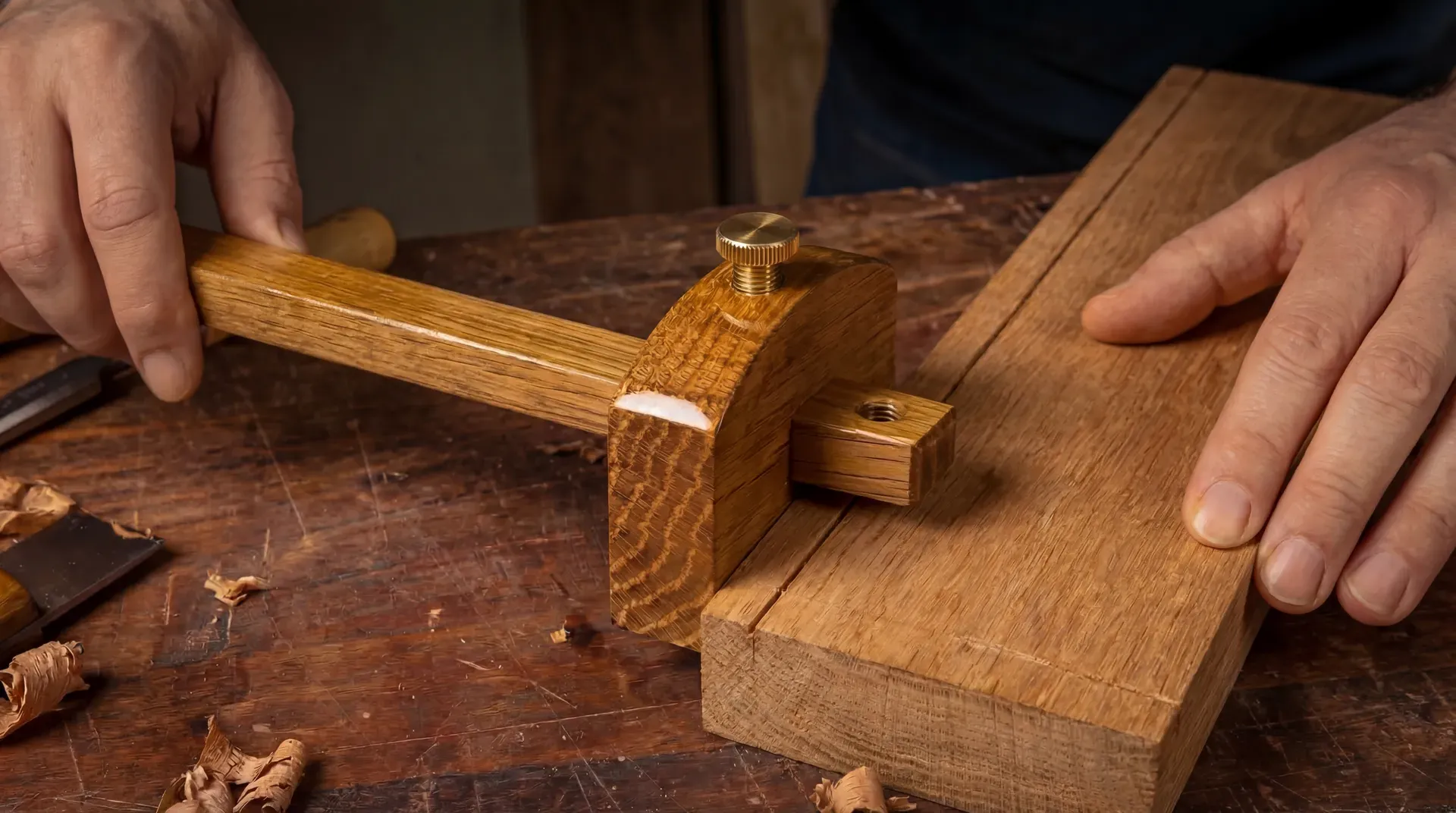

Hold the gauge with your dominant hand wrapped around the fence. Your thumb sits on the beam, your fingers curl around the fence so it presses flat against the edge of the timber. The key word is flat. If only one corner of the fence touches the timber edge, the scribed line will wander.
For a pin gauge, tilt the beam slightly so the pin trails behind the direction of travel, like dragging a stick through sand. This stops the pin from digging in and splitting the timber. You're scratching the surface, not ploughing it.
Apply firm lateral pressure (fence against the timber edge) and light forward pressure (pin against the surface). If you're pushing hard to make a mark, the pin is dull.
Never run the gauge off the end of the board. The pin will catch the end grain and splinter the timber. Stop 10-15mm short of each end, or scribe from both ends towards the middle and let the lines meet.
Multiple light passes beat one heavy stroke. Two or three gentle passes produce a cleaner, more visible line than one deep gouge. The scribed line should be just deep enough to catch the light and guide a saw or chisel. If you're producing shavings, you're pressing too hard.
Making the line visible
A scribed line can be hard to see, especially on pale timber in bright light. Follow the scribed line with a sharp pencil held at a low angle so the pencil tip falls into the groove. The graphite fills the scribed mark and makes it stand out. If you go wrong, erase the pencil and the scribed line remains as your permanent reference.
Scribing kitchen panels to walls
This is the most common marking gauge application during a kitchen installation. End panels (the visible panel at the end of a run of units) rarely sit flush against the wall because the wall isn't perfectly flat. You scribe the panel to match the wall's profile.
For simple scribing (where the gap is small and consistent), set a marking gauge to the widest gap between the panel and the wall. Run the fence along the wall while the pin scribes a line on the panel. Cut to that line and the panel fits the wall's contour.
For larger or more irregular gaps, a compass or a purpose-built scribing tool (the Trend EasyScribe, available at Screwfix) does a better job. But for small, consistent gaps, a marking gauge is the tool to reach for first.
How to check quality and accuracy
The pin sharpness test
A sharp pin scribes a fine, clean line that catches the light. A dull pin tears the grain and produces a rough, fuzzy mark. If you have to press hard to see the mark, the pin needs sharpening.
Sharpen the pin by filing only two faces: the face closest to the fence and the face furthest from the fence. This creates a flat cutting edge (like a tiny chisel) rather than a conical point. A conical point follows the grain and wanders. A flat edge cuts where you point it.
Use a fine needle file or a small diamond paddle. Ten strokes on each face is usually enough. On budget gauges with soft steel pins, you'll need to do this every few hours of use. Mid-range gauges with hardened pins hold their edge much longer.
The fence fit test
Slide the beam back and forth through the fence. There should be smooth, consistent friction, not a loose rattle. A sloppy fit between beam and fence allows the beam to wobble, and a wobbling beam means your scribed line isn't at a consistent distance from the edge.
On budget gauges, the fence-to-beam fit can be loose enough to introduce 0.5mm of error per 19mm of setting. That's about 3% error, which is visible on a finished piece. If you find play in the fence, a thin shim of veneer glued to the inside face of the fence can take up the slack.
The repeatability test
Set the gauge to a known measurement. Scribe a line on a piece of scrap timber. Without adjusting the gauge, scribe a second line on another piece of scrap. Measure both. They should be identical. If they're not, the thumbscrew isn't holding the beam firmly enough.
What to buy
Budget: £8 – £12
The Draper Marking Gauge (beechwood, around £8 at Toolstation) is the best-value entry point. It has a 5-star average across 73 reviews. Beechwood construction, plastic thumbscrew, fixed pin. It does the job. The Stanley Marking Gauge (ABS plastic body, metal faceplate, around £11 at Screwfix) is a step up in durability with 38 reviews at 3.9 stars. Neither will win beauty contests, but both scribe accurate lines if you keep the pin sharp.
At this price, buy two or three rather than one expensive gauge. Set each to a different measurement at the start of a project and leave them. One for your skirting reveal, one for your architrave margin, one for whatever else comes up. This eliminates resetting errors entirely and is exactly how experienced carpenters work.
The "keep multiple gauges at fixed settings" technique is the single most useful marking gauge tip that nobody tells beginners. Resetting a gauge introduces measurement error every time. Cheap gauges set and left alone are more accurate than an expensive gauge constantly reset.
Mid-range: £15 – £27
The Faithfull FAIRMARK (hardwood, brass facing plates, nylon friction pad, around £15 – £17 at Screwfix or £14 on Amazon UK) is the trade counter standard, available through 12,000+ UK stockists. It's well-made, holds its setting, and the brass face plates mean the fence wears slowly.
The Joseph Marples No. 6 (plantation rosewood with brass fittings, around £19 from specialist stockists) is the Sheffield-made option. Marples gauges are consistently recommended on UK woodworking forums as the practical quality choice. "Good design does not have to cost much," as one UK Workshop contributor put it, "and spending more does not assure you of a good marking gauge."
For a combination gauge (pin on one side, twin mortice pins on the other), the Faithfull FAIRCOMB runs about £24 – £31 at Screwfix. It covers standard marking and mortice work in a single tool.
Premium: £24 – £50 (wheel gauges)
The Veritas Standard Wheel Marking Gauge (around £24 – £30 depending on retailer) is the entry point for wheel gauges. Non-graduated beam, smooth micro-adjust option available for £8 – £15 more. Veritas is the brand that wheel gauge advocates recommend most consistently.
The Veritas Micro-Adjust Wheel Marking Gauge (around £30 – £47 depending on variant and retailer) adds fine adjustment for precise setting. Available in metric and imperial graduated versions. Replacement wheels cost about £4.
Above £50 you're into enthusiast territory. The Joseph Marples Trial 1 (rosewood, brass, around £55) and the Veritas Dual Marking Gauge (around £39 – £49) are superb tools but not necessary for renovation and extension work.
Above £100 (Tite-Mark at £115 Rob Cosman at £119) is furniture-making territory. Don't go there unless you're building cabinets from scratch.
Alternatives
A combination square can mark lines parallel to an edge by holding a pencil against the end of the rule while sliding the head along the workpiece edge. It works, but it's fiddly, requires a steady hand, and can't match the repeatability of a purpose-built marking gauge. Use it when you need a single mark. Use a marking gauge when you need the same mark twenty times.
A pencil and tape measure is what most people default to. It's slower, less accurate on repetitive marks, and relies on you reading the tape correctly every time. For a single measurement on a single piece of timber, it's fine. For scribing consistent reveals across eight lengths of architrave, it's a recipe for visible inconsistency.
For scribing timber to uneven walls (where the gap varies across the length), a compass or a Trend EasyScribe (around £36 at Screwfix) is better than a marking gauge. The marking gauge can only scribe a constant offset. A compass or scribing tool transfers the wall's profile directly onto the workpiece.
Where you'll need this
Marking gauges are used during:
- General carpentry during second fix, marking consistent reveals on skirting boards and architraves
- Kitchen installation, scribing end panels to fit against uneven walls
- Timber cutting and fitting, marking parallel cut lines on structural timber
These tasks appear across all stages of any extension or renovation project. Anywhere you're cutting timber to a consistent dimension or scribing a panel to fit an uneven surface, a marking gauge saves time and prevents visible errors.
Keeping it sharp
The pin is a consumable. Budget gauges use soft steel pins that dull quickly. Mid-range gauges use hardened steel that lasts longer. Either way, a dull pin is the number one cause of bad results.
File the pin on two faces only (the face nearest the fence and the face furthest from the fence) to create a chisel-like cutting edge. Don't sharpen all four sides to a point. A chisel edge cuts where you steer it. A point follows the grain.
For wheel gauges, hone the cutting wheel with a fine diamond paddle before first use. Replacement wheels for Veritas models cost about £4 from Toolnut or Classic Hand Tools. If the wheel develops a flat spot or stops cutting cleanly, replace it rather than trying to resharpen it.
Store wooden gauges somewhere dry. Wood swells in damp conditions, and a swollen beam won't slide smoothly through the fence. A shelf in the garage is fine. A toolbox left in a wet van is not.
