Laser Levels: Green vs Red, What to Buy, and How to Actually Use One

Your kitchen fitter installs a run of base units by eye, checking each one with a short spirit level. They look fine individually. But when the worktop goes on, there's a 6mm bow across the 3-metre run because nobody set a single datum line across the full width first. That's a shim job at best, a refit at worst. A laser level would have projected a continuous level line around the entire room in two seconds, giving every unit a common reference point. They cost less than a single hour of a kitchen fitter's time.

What it is and when you need one

A laser level projects a thin beam of light (red or green) onto walls, floors, and ceilings. Self-levelling models use an internal pendulum to find true level automatically, so you don't need to fiddle with adjustment screws. Switch it on, wait a second or two for the pendulum to settle, and you have a perfectly level line projected across the room.

The most common type for home renovation is the cross-line laser. It projects two lines simultaneously: one horizontal, one vertical, forming a cross on the wall. That cross gives you both a level reference and a plumb reference in a single setup. Some models let you switch to horizontal-only or vertical-only mode.

You need one whenever you're marking consistent heights across a room, checking whether floors or walls are level, or aligning anything that runs in a straight line over more than a metre or two. A spirit level tells you whether one spot is level. A laser level tells you whether an entire wall, an entire floor, or an entire row of units shares the same level line.

Green vs red: this matters more than you think

Red laser levels are cheaper. Green laser levels are easier to see. That's the short version. Here's why it matters in practice.

The human eye is most sensitive to light at around 555 nanometres, which is green. Red laser light sits at around 635 nanometres, well away from that peak. Green beams at 532 nanometres land almost exactly where your eye is most responsive. The result: a green laser line is significantly brighter to the human eye than a red one at the same power output.

In a dimly lit room with no windows, red is fine. But modern kitchen extensions are designed around natural light. Big windows, bifold doors, skylights. In those conditions, a red beam fades to near-invisible unless you're right next to the wall. A green beam stays crisp and readable across the room, even in bright daylight.

Click to enlarge

Forum users who've switched from red to green consistently say the same thing: they wished they'd done it years ago. The price gap between red and green versions varies by brand, from as little as £3(Stanley) to £31(Bosch Quigo). For renovation work in modern, well-lit rooms, green is not a luxury. It's a practical necessity.

Red still has a place. If you're working in a dim garage, a loft conversion with no windows yet, or a basement, red is perfectly visible and costs less. But for the tasks most homeowners face (kitchen installation, tiling, socket heights), green wins.

Types: cross-line vs 360 vs rotary

Not every laser level does the same job. Here's what you're choosing between.

For most homeowners managing a renovation or extension, a standard cross-line laser is all you need. It covers the wall you're working on, and you rotate the unit to cover the next wall. A 360-degree model saves time in large open rooms but costs roughly twice as much. Forum users who do kitchen fitting and tiling routinely confirm that a 2-axis cross-line handles everything they throw at it.

Rotary lasers are a different category entirely. They're for outdoor, long-distance work over 30 metres or more. If your groundworker needs one for setting out foundations, they'll bring their own. Don't buy one.

How to use it properly

Setting up

Place the laser on a stable surface. A tripod is ideal, but a flat shelf, a stack of blocks, or even the top of a stepladder works. The surface doesn't need to be perfectly level, just within about 4 degrees of level. That's a visible tilt, so you'd have to place it on something obviously wonky to exceed it.

Switch it on. Most self-levelling models beep or flash if they can't self-level (because the tilt is too steep). If the light steadies and the beep stops, the tool has found level. If it keeps flashing, reposition it on a flatter surface.

Setting a kitchen datum line

This is the single most common use for a laser level in a domestic renovation. Kitchen base units need their tops at a consistent height so the worktop sits flat across the full run. The standard datum height is 860mm from the finished floor, measured from the highest point on the floor.

1. Find the high point of the floor

   Set the laser to project a horizontal line around the room. Use a tape measure at multiple points along the wall to measure from the floor up to the laser line. The shortest measurement is your high point.

2. Set the datum

   From the high point, measure up 860mm (or whatever your kitchen designer specifies). Mark this on the wall. Adjust the laser height (raise or lower the tripod) until the beam sits exactly on that mark.

3. Transfer the line

   The laser now projects the datum around the room. Mark pencil dots where the laser crosses each wall at regular intervals. These dots are your reference for every base unit in the run.

4. Install to the line

   Every base unit top should align with those pencil marks. Where the floor dips below the high point, shim the unit feet up to meet the datum. You're shimming up to match the high point, never cutting down.

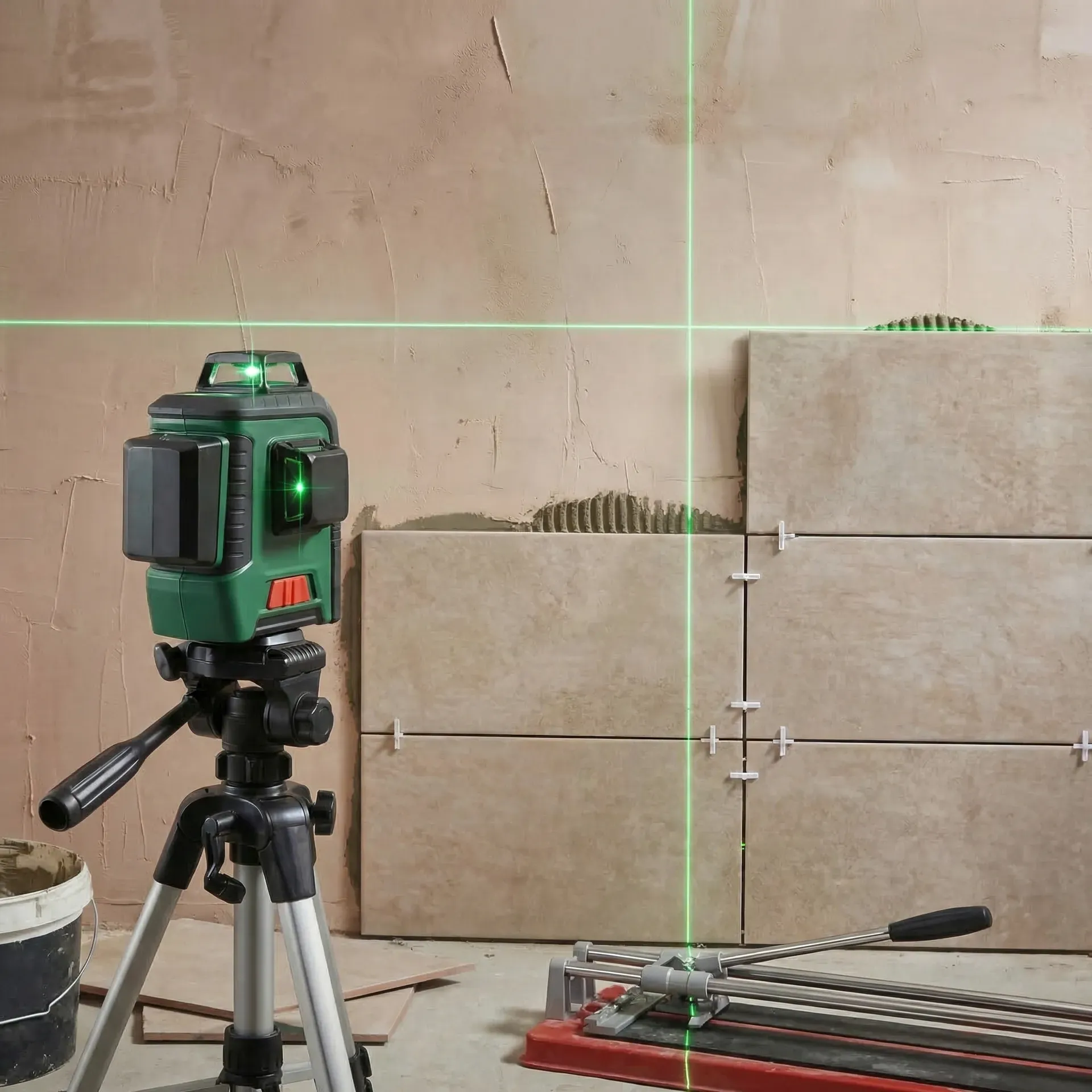

Tiling alignment

For wall tiles, project a horizontal line at the height where your first full row of tiles will sit (typically one tile height above the floor, adjusted for cuts). This gives you a dead-straight starting line across the full wall. Project the vertical line where your first column starts.

For floor tiles, the laser projects lines onto the floor surface. Align the vertical beam with your intended starting line and work outwards from there.

Click to enlarge

Marking socket and switch heights

Building regs don't mandate exact socket heights, but convention puts standard sockets at 300mm from the floor and light switches at 1200mm. Project a horizontal line at the required height, walk along the wall marking where each socket or switch goes. Every one ends up at exactly the same height, which looks professional and satisfies building control.

The pendulum lock: the feature nobody explains

Inside every self-levelling laser level is a small pendulum, a weighted mechanism suspended on a pivot. Gravity pulls it vertical, and the laser is mounted to it. That's how the tool self-levels.

The pendulum lock is a physical switch (usually a slider or lever on the body) that clamps the pendulum in place. It serves two purposes.

During transport and storage: If the pendulum swings freely while the tool bounces around in a toolbox or van, the delicate pivot can be damaged. Once the pivot is bent or worn, the tool no longer self-levels accurately. Lock the pendulum every time you're not actively using the laser.

For slope mode: Some tasks need you to project a line at an angle rather than level (raking lines for staircases, for instance). Locking the pendulum disables self-levelling and lets you tilt the unit deliberately. The laser will flash or show a different indicator to confirm it's in manual mode.

How to check calibration

Your laser level might look fine and behave normally but project a line that's slightly off true level. You won't notice this by eye. You need a simple test, and you should do it before any major job and after any drop or knock.

1. Set up facing a wall

   Place the laser on a tripod about 5-10 metres from a flat wall. Switch it on and let it self-level. Mark where the horizontal line hits the left edge of the wall (Point A) and the right edge (Point B).

2. Rotate 180 degrees

   Without moving the tripod, rotate the laser unit so it now faces the opposite direction. Then rotate it back 180 degrees so it faces the same wall again, but the left-right orientation of the unit is now reversed.

3. Compare the marks

   The laser line should hit the same two pencil marks. If the line at Point A or Point B has shifted, the tool is out of calibration. At 10 metres, a shift of more than about 5mm means it needs professional recalibration or replacement.

What to buy

The laser level market splits neatly into three tiers. Your choice depends on how often you'll use it and how bright your workspace is.

Budget: red cross-line models

The Bosch Quigo (red, around £40 – £55 at Screwfix) is the entry point from a reputable brand. Accuracy of ±0.8 mm/m, range of 7-10m, self-levelling. Perfectly adequate for a dim room or a one-off job. The Stanley Cubix red (around £57) offers slightly better accuracy at ±0.6 mm/m with a 12m range. The Magnusson own-brand red at Screwfix (around £50) sits between them at ±0.5 mm/m accuracy with a 15m range.

For occasional use in a room without huge windows, any of these will do the job. But if you're fitting a kitchen in a modern extension with lots of glazing, you'll struggle to see the red line.

Mid-range: green cross-line models

This is where most homeowners managing a build should shop. The Magnusson Green (around £60at Screwfix) is excellent value with ±0.3 mm/m accuracy and a 15m range. The DeWalt DW088CG-XJ green (£150 – £155 at Screwfix/Toolstation) is the one tradespeople buy: ±0.3 mm/m accuracy, 15m range, solid housing, and a magnetic pivot bracket for mounting on metal door frames and steelwork.

Between those two, the Bosch Quigo Green (around £71 – £90 depending on retailer) offers a good middle ground. It's compact, accurate to ±0.6 mm/m, and light enough at 182g to fit in a jacket pocket.

Forum users consistently recommend Huepar as the best-value brand in this tier. The Huepar 603CG (3x360 green, around £80 – £100 on Amazon UK) is praised across multiple UK forums as offering features comparable to DeWalt at roughly half the price. Huepar isn't stocked at Screwfix or Toolstation, so you'll need to order via Amazon. Some users report mixed build quality, but warranty replacements are reportedly fast.

Pro: rechargeable platform models

The DeWalt DCE088D1G (12V Li-Ion, green, around £200) and Bosch AdvancedLevel 360 (green, around £213) sit at the top of what a homeowner would reasonably buy. Rechargeable lithium batteries, longer range (24-30m), and sturdier housings designed for daily site use.

You don't need a pro model for a single extension project. But if you're planning multiple renovation projects or want a tool that runs all day on a single charge without burning through AA batteries, the extra spend is justifiable.

Anything above £300(Milwaukee M12, Leica L6G) is professional surveying territory. Leave those to the trades.

Batteries: the hidden running cost

AA-powered models are cheaper to buy but consume batteries at a rate that surprises most homeowners. Battery life varies widely by model, from around 10 hours on some green lasers to 40+ hours on certain DeWalt models. Over a multi-week kitchen installation, the cost adds up.

Your options: buy rechargeable AA batteries (Eneloop are the standard recommendation), or buy a model with a built-in rechargeable lithium battery. The lithium models cost more upfront but save hassle and running costs over the life of the tool.

Mounting options

Most laser levels come with a 1/4-inch tripod thread (the same thread used on camera tripods). A small camera tripod from a charity shop works perfectly for indoor use. Purpose-built laser tripods with telescoping legs and fine-height adjustment cost £15 – £30 at Screwfix or Toolstation.

Some models include a magnetic base or a clamp bracket. The magnetic base sticks to steel lintels, RSJs, and metal door frames, which is genuinely useful during structural work. Clamp brackets grip onto shelves, scaffolding poles, or any edge.

Alternatives

A laser level replaces several traditional tools, but those tools still have their place.

A spirit level tells you whether a single surface is level or plumb. It's tactile, needs no batteries, and is faster for checking one item (a single unit, a door frame, a course of blocks). You'll still carry one even if you own a laser level. The laser gives you the room-wide reference; the spirit level checks each element against it.

A chalk line snaps a physical mark on a surface. Unlike a laser line, a chalk mark stays visible without power and doesn't wash out in bright light. For marking long straight lines on floors (tile layout, screed datum lines), a chalk line is simpler and more permanent.

A plumb bob finds true vertical using gravity. It's more accurate than any laser over short distances and works without batteries. For transferring a point straight down from ceiling to floor (marking where a partition wall meets both surfaces), a plumb bob is hard to beat.

None of these are wrong choices. But none of them project a continuous reference line across an entire room in two seconds, which is what makes a laser level worth owning for any project larger than a single shelf.

Where you'll need this

• Bifold and sliding doors - projecting a level line across the full opening to check the sill and head are true
• Screeding - setting a consistent datum level across the floor area for uniform screed depth
• Electrical layout planning - marking consistent socket heights and switch positions across the room
• Plumbing layout planning - checking and marking fall levels for waste pipes
• Underfloor heating - level checking during UFH installation
• Tiling - aligning tile rows and columns to a straight reference
• Kitchen installation - setting base unit heights at the 860mm datum
• Measuring and layout - general layout marking and dimensional checking

These tasks appear across all stages of any extension or renovation project, not just kitchens. Anywhere you need consistent heights, straight lines, or level references across a room, a cross-line laser is the fastest way to get them.

Safety

Cross-line laser levels sold in the UK must comply with BS EN 60825-1:2014 and are typically Class 2 lasers (maximum 1 milliwatt output in the visible spectrum, 400-700 nanometres). Class 2 is considered safe for momentary exposure because the human blink reflex protects the eye.

Cheap laser levels from unverified sellers (particularly some Amazon marketplace listings) may not comply with UK laser safety standards. Stick to models from recognised brands sold through established UK retailers. Trading Standards can remove non-compliant products under BS EN 50689:2021, but enforcement is reactive, not proactive.
